वैशिष्ट्ये
Proven durable construction design, overall frame work adopts full steel structure, high strength, can meet the needs of high strength work.
Body hinger, using polymer composite bushing,hardness is twice as general copper sleeve!fully extended busing life!Because of its self-lubricating fuction without regular filling grease can avoids rapid wear of the lining sleeve for the pin shaft fracture failure.
Good field of vision, safe and reliable.
व्हिडिओ
तपशील
Capacity @ Load Center (kg @ mm) | मॉडेल | Carriage Width (mm) | Truck Mounting Class | Hinged Forks Mounting Class | Overall Height (mm) | Tilt Forward / Tilt Backward | वजन (किलो) | प्रभावी जाडी (मिमी) | गुरुत्व क्षैतिज केंद्र (मिमी) |
2000 @ 500 | HFB20D-001A | 1040 | II | II | 955 | 45° / 25° | 320 | 310 | 132 |
2500 @ 500 | HFB25D-002A | 1040 | II | II | 955 | 45° / 25° | 320 | 390 | 132 |
3000 @ 500 | HFB30D-003A | 1100 | III | III | 968 | 45° / 25° | 335 | 325 | 132 |
3500 @ 500 | HFB35D-002B | 1100 | III | III | 1175 | 45° / 25° | 400 | 383 | 132 |
4000 @ 500 | HFB40D-003B | 1100 | III | III | 1388 | 45° / 25° | 480 | 395 | 195 |
4500 @ 500 | HFB45D-004B | 1450 | III | III | 1388 | 45° / 25° | 800 | 425 | 195 |
टीप
फोर्कलिफ्टची वास्तविक क्षमता आणि फोर्कलिफ्ट उत्पादकाकडून संलग्नक मिळवा,
One/Two sets additional oil circuit required on forklift
Can be customized according to customer requirements of various width.
कृपया HUAMAI कडील विक्रीशी संपर्क साधा
मॉडेल | मि. हायड्रॉलिक फ्लो (एल / मिनिट) | आर.सी. हायड्रॉलिक फ्लो (एल / मिनिट) | मॅक्स. हायड्रॉलिक फ्लो (एल / मिनिट) | आर.सी. हायड्रॉलिक प्रेशर (बार) |
HFB | 19 | 38 | 57 | 35 |
पर्याय
काटे
बादली
लोड बॅकरेस्ट वाढवा
अर्ज
Hinged forks are safe and efficient to dump bulk cargo container ; Configurated with bucket to shovel all loosen goods such as sand, coal, grain, fertilizer, sod and the blocks, ect.
द्रुत तपशील
मूळ ठिकाण: फुझियान, चीन (मेनलँड)
ब्रँड नाव: हुमाएआय
Model Number: HFB20D-001A

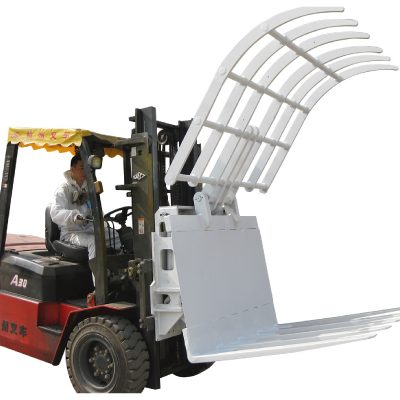

Product Name: Hinged fork forklift
Type: HFB20D-001A
माउंटिंग क्लास: II
Carriage Width (mm): 1040mm
Overall Height (mm): 955mm
Tilt Forward / Tilt Backward: 45° / 25°
Weight (kg): 320kg
Effective Thickness (mm): 310mm
Horizontal Center of Gravity (mm): 132mm
Hinged Forks Mounting Class: II
